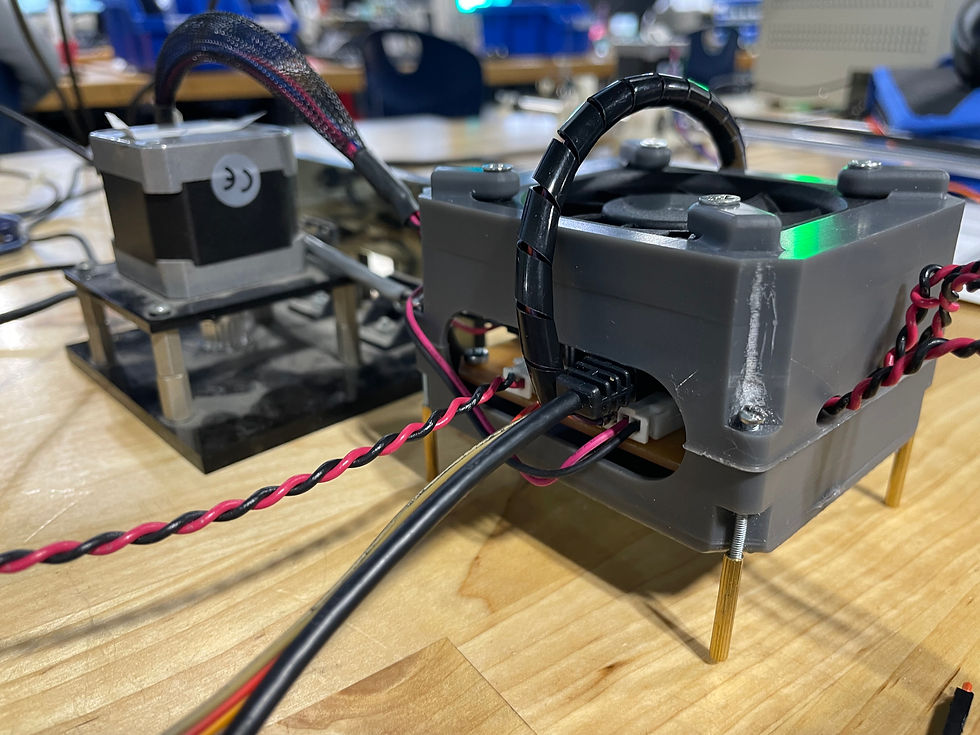

This is a picture of a test model, which will rotate motor based on the sensor input. The sensor on input 1 and 0. I'm using LM339AN IC and DRV8833 Dual Motor Driver. I'm going to be working on making a PCB which will connect to Raspberry Pi.
This is a picture of all needed wire being connected to the Main PCB.
